Hello,
had ordered the Rc Boat Kit and then printed the catamaran in PETG Red Transparent.
All installed and tested in the pool. It was really fun.

Hi.

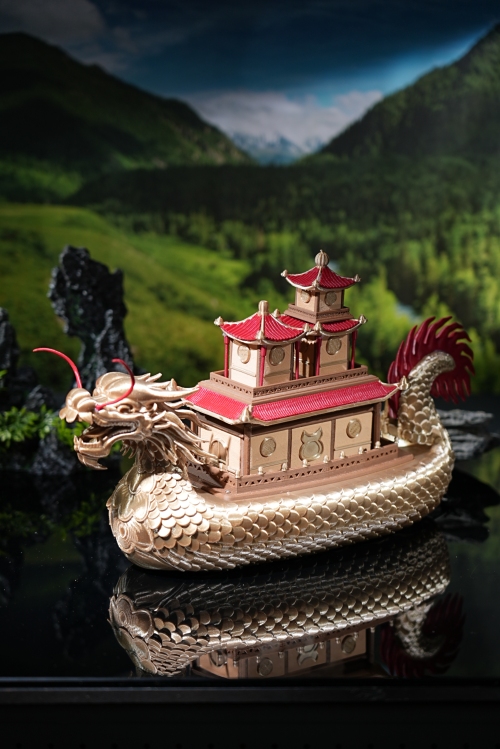

I finished installing a "MakerKit RC Boat" I had received, into my previously printed "MAKEROAD Dragon Boat (Model ID:M1000189846)" model.
It seems to be working. But for now, I’ve only tested it in a sink, and I need to find a larger body of water to continue the tests.

My previous related "MakerKit RC Boat" topics:
where the "MAKEROAD Dragon Boat" model printed parts can be seen:
- My print of "MAKEROAD Dragon Boat" https://www.makeroad.com/community/C100497/2606001355114
- First flotation test of my print of the "MAKEROAD Dragon Boat" model https://www.makeroad.com/community/C100497/2606001380910
Photos details of the "MakerKit RC Boat" I received:
- "I have received my pre-orders for the Makeroad MakerKit RC Car & Boat in France": https://www.makeroad.com/community/C100393/2609000159049

Good continuation.

🔥 The MAKEROAD September Creator Climb Plan Has Successfully Concluded! Thank you to all designers for your enthusiastic participation and dedication. Based on a strict verification of our platform's backend system statistics and the event rules, we are now officially announcing the results and reward distribution details for this event as follows:
✅ Model Upload + Post to Earn Points Event: Please see Image 2 for the winners list.
✅ Creator Lucky Draw: Please see Image 3 for the winners list.
✅ Designer Invitation Incentive Program: Please see Image 4 for the winners list.
📢 Monthly [Top 10 Models by Downloads]
Announcement Rules: Creators whose models exceed 100 downloads in a single month will receive a 7-day homepage feature + 5 rolls of filament.
👉 This Month’s Update: According to statistics, no creator hit over 100 monthly downloads this month. Hence, no creators qualified for the reward this period. The reward is still up for grabs, keep pushing for higher downloads!
📝 Important Notice：
The qualification verification for all winners on this list has been completed, and the corresponding rewards will be distributed uniformly. Overseas winners who have won physical prizes must contact our staff via the official email within 7 days of this announcement to provide their shipping information: official@makeroad.com
📧 If you have any questions or have not received your reward, please contact us at official@makeroad.com for assistance. Thank you once again for your support of the MAKEROAD platform! More exclusive events and benefits for designers are currently in the works, so stay tuned. See you in the next one! 🚀
🔥 The MAKEROAD September Creator Climbing Plan has come to a successful end!
Thank you to all the designers for their enthusiastic participation and dedicated creation. According to the platform's backend system statistics and strict verification of activity rules, the award list and reward distribution instructions for this event are officially announced as follows:
✅ Upload Model+Post to Earn Points Activity: Please refer to Figure 2 for the list of winners
✅ Creator Lottery: Please refer to Figure 3 for the list of winners
✅ Designer Invitation Incentive Plan: Please refer to Figure 4 for the list of winners
📢 Monthly [Top 10 Download Models List] Announcement
Activity rules: Creators with a monthly download volume exceeding 100 will receive a reward of 7 days of homepage recommendations and 5 rolls of consumables.
👉 This month's report: According to statistics, there have been no creators whose monthly download volume has exceeded the 100 mark this month, so there are no creators who meet the reward criteria for this issue. The reward is available, looking forward to everyone continuing to sprint!
📝 Important reminder:
The list of winners has completed all qualification verification, and the corresponding rewards will be distributed uniformly. Chinese users who receive physical prizes are required to fill out a questionnaire form within 7 days after the list is announced, and we will distribute them based on the received information provided. Questionnaire link: https://v.wjx.cn/vm/whExBvx.aspx# Overseas users who receive physical prizes must use the official email within 7 days after the list is announced official@makeroad.com Contact the staff to provide receiving information.
📧 If you have any questions or have not received the reward, you can contact the official email official@makeroad.com Assist in handling. Thank you again for your support of the MAKEROAD platform! More exclusive designer welfare activities are being prepared, welcome to continue following, see you next time 🚀

Hi.
I am pleased to have finished installing the "MakerKit RC Car" received with the previously printed "MAKEROAD F1" model.
Everything seems to be working as expected. I still need to test it during prolonged use and/or outdoors.

My previous related "MakerKit RC Car" topics:
where the "MAKEROAD F1" model printed parts can be seen:
- My first assembly of the "MAKEROAD F1" (awaiting a MakeRoad "MakerKit RC Car") https://www.makeroad.com/community/C100393/2606001454931
- My print and partial assembly of "MAKEROAD F1" https://www.makeroad.com/community/C100393/2606001397488
Photos details of the "MakerKit RC Car" I received:
- "I have received my pre-orders for the Makeroad MakerKit RC Car & Boat in France": https://www.makeroad.com/community/C100393/2609000159049

Good continuation.

Thank you to MAKEROAD for providing the 28000 RPM brushed power kit, which has given this completely self-designed chassis a reliable heart.
🎯 Core design concept
There is no shortage of 1/24 drift cars on the market, but they can either be purchased as finished products or printed according to existing blueprints. I want to make a car that I draw myself from the first line - without compromising on standard parts, space, replacing the motor, or relying solely on mechanical structure to tame high-speed into controllable drift power.
The whole car weighs about 200 grams, rear wheel drive, adjustable wheelbase of 98-110mm, wheelbase of 78-82mm, suitable for mainstream 1/24 hard shell. 95% of the structure is 3D printed, with only two metal through center columns for the secondary gear shaft and drive shaft, and the rest are all independently manufactured.
During the design process, reference was made to the structural logic and geometric layout of mainstream mosquito bike frames such as HT3, Jingshang, LSD, etc. Modeling with Rhino, one week for ideation, one week for drawing, and one week for printing and testing.
⚙️ Detailed design of modules
1. Transmission System: Secondary Belt Reduction+TPU Self Printing Belt
The 28000 rpm motor of MAKEROAD has sufficient torque and high speed. The rear axle gear is limited by ground clearance, and the outer diameter cannot exceed 12mm. Single stage deceleration cannot withstand it at all. The solution is to add an intermediate shaft and perform a two-stage deceleration:
Motor 12T → Intermediate shaft 32T to 12T → Rear shaft 16T
The total reduction ratio is 3.556, and the theoretical top speed is about 40km/h
All belts are printed with TPU 95A flexible material, GT2 tooth shape, 3mm width, fully customizable length, no need to accommodate market specifications
The rear axle adopts CVD universal joint transmission, which provides smooth power and releases the freedom of suspension movement
The front wheels are driven and directly fixed to the steering cup, eliminating the need for differential and front drive shaft
2. Suspension system: independent suspension+material elastic deformation
Both front and rear are independently suspended, with an effective travel of 3mm. The front upper swing arm adopts a three-stage I-section, balancing lightweight and bending strength.
Due to its small size, the traditional ball head connection has been cancelled. The small horizontal interference generated by unequal length double A-arms during suspension motion is completely absorbed by the elastic deformation of the rod and shock absorber material. This is a design trade-off that simplifies complexity by replacing mechanical joints with material properties, resulting in fewer parts and more direct assembly.
3. Steering system: servo direct drive+diagonal pull rod
The steering adopts servo direct drive combined with inclined rod pull rod. The servo end diagonal rod is about 45 °, the wheel end diagonal rod is 30 °, and the maximum steering angle is about 45-50 °. After changing to 30 °, not only did it solve the interference between the wheels and shock absorbers during extreme steering, but it also increased the steering angle. The Ackermann characteristic can be fine tuned by adjusting the rod angle and servo arm hole position.
4. Modularization and 3D printing technology
The chassis is divided into five independent modules: front suspension assembly, rear axle assembly, intermediate shaft assembly, servo seat, and motor seat. The entire vehicle is fixed with unified screws and has no buckle structure. Any damaged module can be replaced separately without disassembling the whole vehicle.
The frame material is PLA+/PETG, and the transmission belt is TPU 95A. Only the secondary gear shaft and drive shaft of the entire vehicle use metal through center pillars, while all others are printed. The vehicle structure is autonomous and controllable, and parts can be printed and replaced at any time.
5. Adjustable wheelbase and wheelbase
The rear axle assembly is designed for multi gear installation, and the wheelbase can be adjusted within the range of 98-110mm without the need to reprint any structural components. The wheelbase is 78-82mm, which can be flexibly adjusted by replacing narrow tires or adjusting the wheel hub degree, and is compatible with mainstream 1/24 hard shells on the market.
