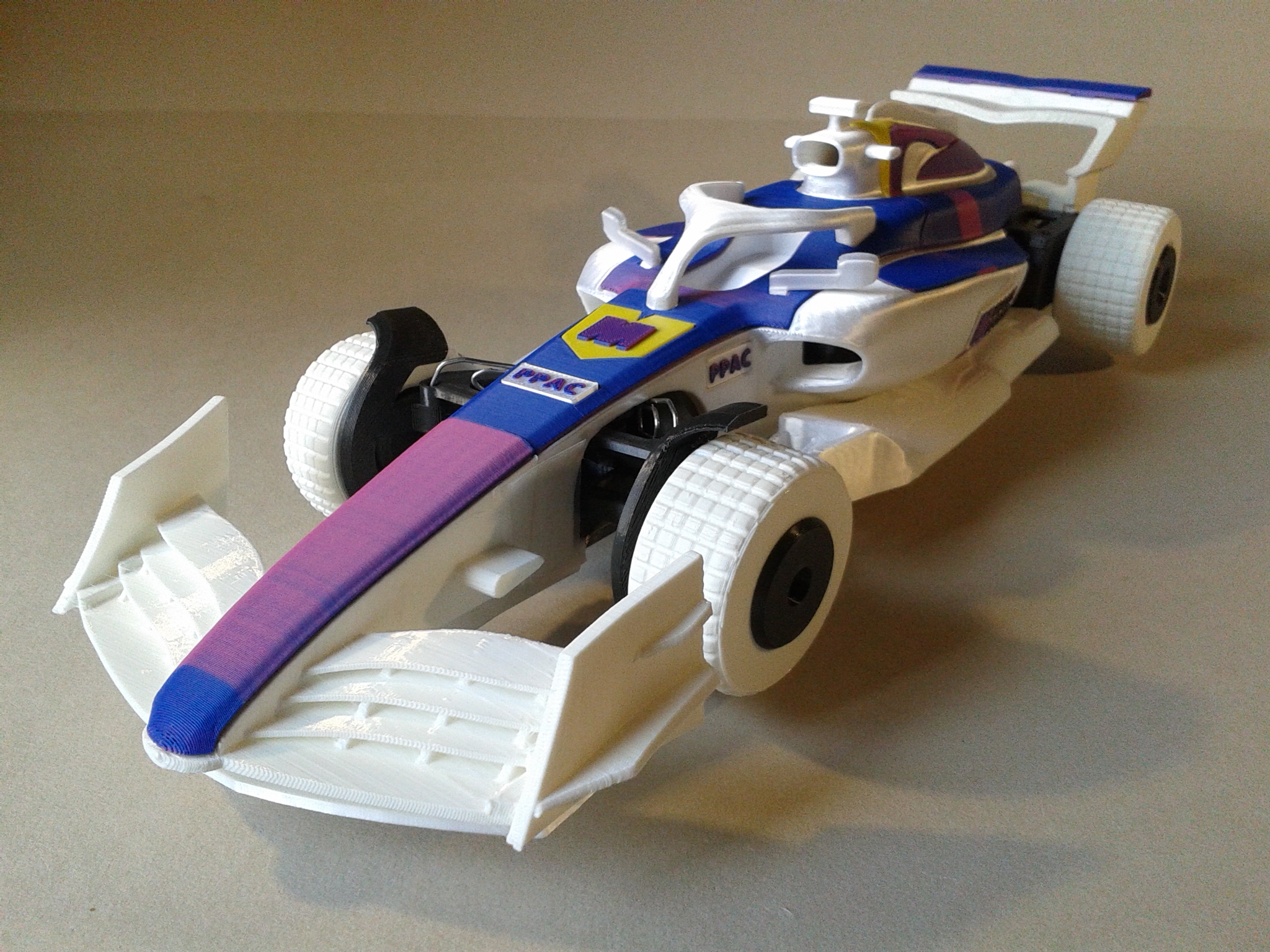

Model Introduction

This remote-controlled F1 racing car is officially designed by MakerKit. It is fully engineered for MakerKit standard modules, including servos, motors, remote controllers and receivers. No extra screws or bearings are required.

Tailored for 3D printing enthusiasts and RC model lovers, this model is fully integrated with complete MakerKit electronic assemblies. Unlike ordinary open-source RC projects that require purchasing scattered accessories separately, this design needs no additional fasteners or bearings. You can start printing directly and assemble effortlessly after finishing printing, greatly lowering the assembly difficulty.

Benefiting from perfectly matched MakerKit components, the car delivers stable overall performance with fast servo response, precise steering and smooth power output. Its simplified assembly structure also reserves abundant space for future modular upgrades.

Technical Features

Front & Rear Crashproof Design

The front wing and rear wing are recommended to be printed with 95A TPU. The flexible material effectively absorbs impact force from high-speed collisions and track edge bumps, protecting the chassis, steering system and electronic parts. These TPU parts are independently replaceable for low-cost maintenance.

Modular Chassis & Quick-Swap Battery Compartment

The integrated platform chassis is equipped with a quick-release battery cover. Batteries can be replaced without removing any shell screws, bringing smoother continuous racing experience. This universal chassis is compatible with various official replacement car shells for quick appearance switching.

Aerodynamic Appearance

It highly restores classic aerodynamic features of modern F1 race cars, including multi-layer front wings, streamlined side deflectors and large-scale diffuser-style rear wings. Most exterior parts can be printed without supports for easy post-processing, keeping sharp outlines and smooth curved surfaces.

Customizable Color Matching

All color-separated shell parts are split into independent components. You can print different parts in diverse colors or materials freely to create exclusive personalized painting styles.

Tolerance-Friendly Structure

Tenon-and-slot embedded design is adopted for the front nose, enabling firm fixation without glue and allowing slight buffer movement to relieve side impact.

Reserved Clearance for Screw Holes

All mounting holes are reserved with proper assembly gaps for smoother installation.

Minimal Glue Usage

Adhesive is only needed for permanent connection of thin split-color parts. All main structural parts are fixed by buckles and screws.

Power & Transmission System

The main rear drive gear is suggested to be printed with PETG for excellent rigidity and wear resistance. TPU-made tires provide realistic rubber texture and proper elasticity.

Printing Guidelines

• Recommended Filaments: PETG for rear drive gears; 95A TPU for tires and crashproof parts; PLA+ 2.0 for car shells and chassis.
• Slicer Settings: 0.2mm layer height; minimum 2 outer walls; infill 15%-25%, 50% infill for stress-bearing parts; supports only needed for a few individual components.
• Total Printing Time: Approximately 20-22 hours (based on standard 0.4mm nozzle settings).

Application Scenarios

• Parent-child interactive assembly and entry-level RC debugging
• School maker education for learning 3D printing, transmission principles and remote control technology
• Casual F1 racing competitions with friends
• DIY modification for material matching, gear ratio and structural optimization

This official MakerKit 3D printed RC F1 car combines great printability and mature modular assembly. Whether you are a seasoned 3D printing player or a total RC beginner, you can easily build a precisely-controlled, durable F1 race car and gain full a sense of accomplishment from printing to racing.
