Tactical · Rugged · Vault-Strong · Impact-Ready
In today’s world, portable power isn’t just a gadget - it’s a lifestyle essential. TERRAX OPS takes that idea further, reimagining the swappable case for the EcoFlow RAPID Pro X into a tactical, rugged, multi-utility platform inspired by rovers and field gear. Please refer to the assembly document for detailed steps for assembly.

🔹 Design Concept

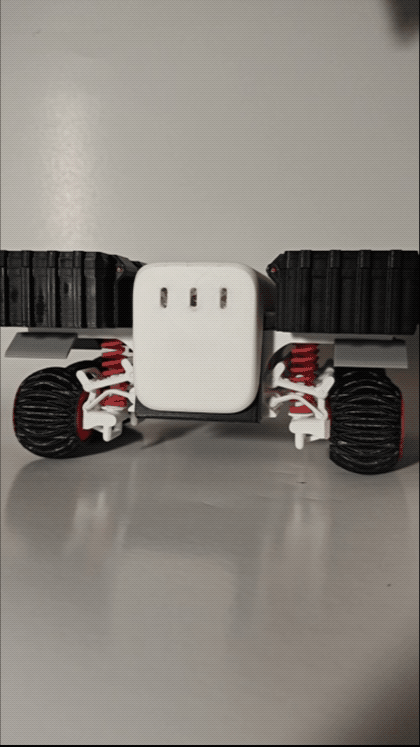

TERRAX OPS isn’t a normal shell — it’s an impact-resistant, modular rover-style case that holds the EcoFlow RAPID Pro X securely, while adding versatility, fun, and rugged storage.
Rugged storage boxes on both sides for adapters, wires, and small essentials.All-terrain wheels with a suspension system that prevents unwanted rolling yet allows the unit to be moved or “played with.”
Tested for Real-World Durability
Drop-tested from height — suspension absorbs impact without breaking.
Load-tested with 1500g+ weight, proving the structure’s resilience.
Designed so the power bank can be easily attached/detached while staying secure.
3D Printing & Assembly
Every part is designed for pure 3D printing with no extra hardware.

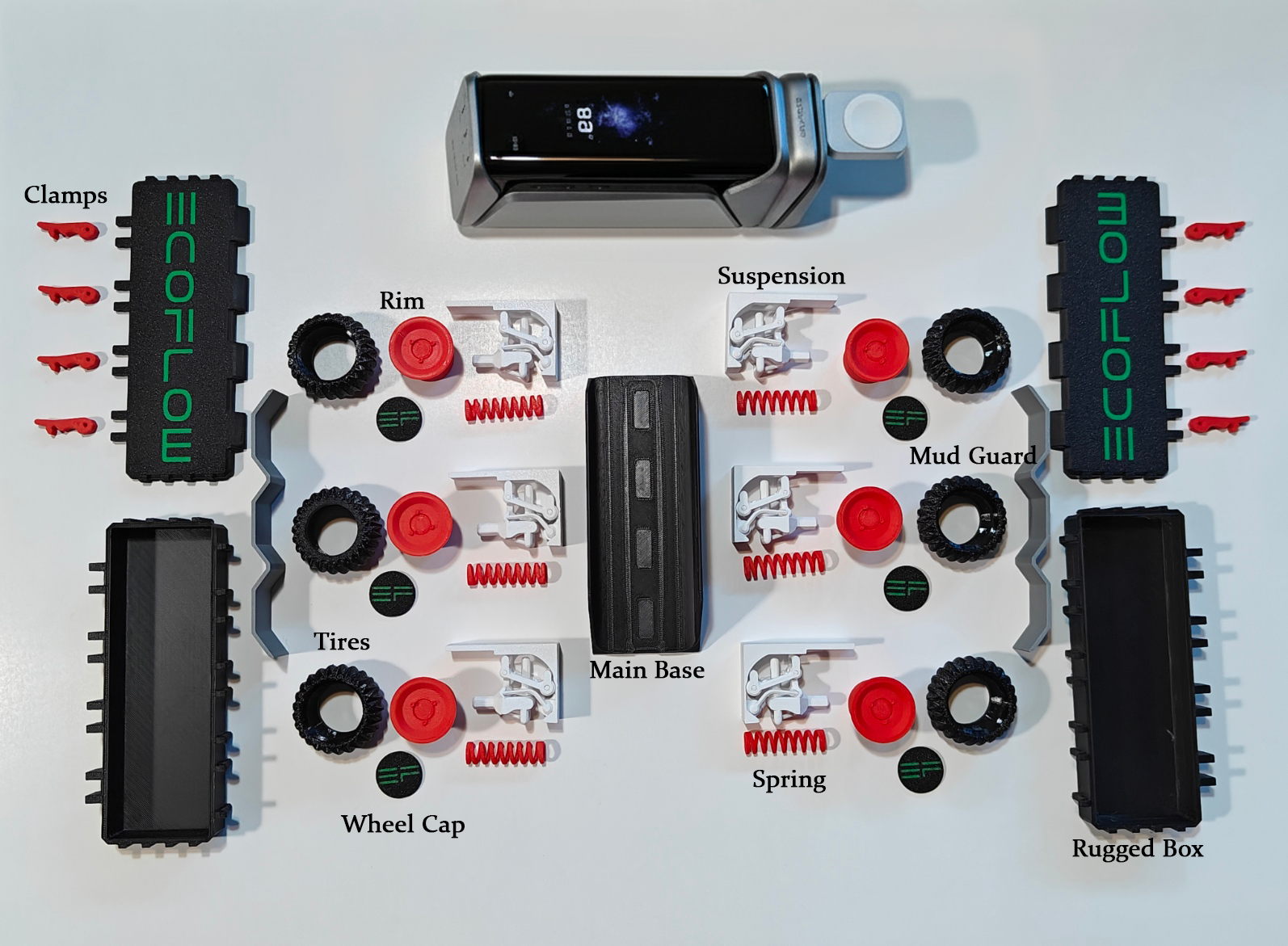

9 build plates included in the print profile:Base CoverSprings
Wheel Rims
Suspension Mechanism
Rugged Box – Left
Rugged Box – Right
Wheels (Recommend printing in TPU for extra grip)
Wheel Caps
Mud Guards
Printing notes:All parts can be printed individually.
Does not require AMS — except the optional EcoFlow logos.
Multi-color designs (logos, accents) are AMS-friendly but optional.
Assembly notes:Use super glue for fixing components permanently.
For rugged box hinges and clamps: feed 1.75 mm raw filament through the hinge holes, cut the excess, and lock in place (demonstrated in product images).
All-terrain wheels and suspension are fixed in modular slots, designed for easy alignment.

Please refer to the assembly document for additional and detailed steps for assembly.

This work has been obtained Intellectual Property License AgreementCreative Commons BY-ND
This is my original work.
