Don’t miss out — follow me for more top-quality tank models!

================================

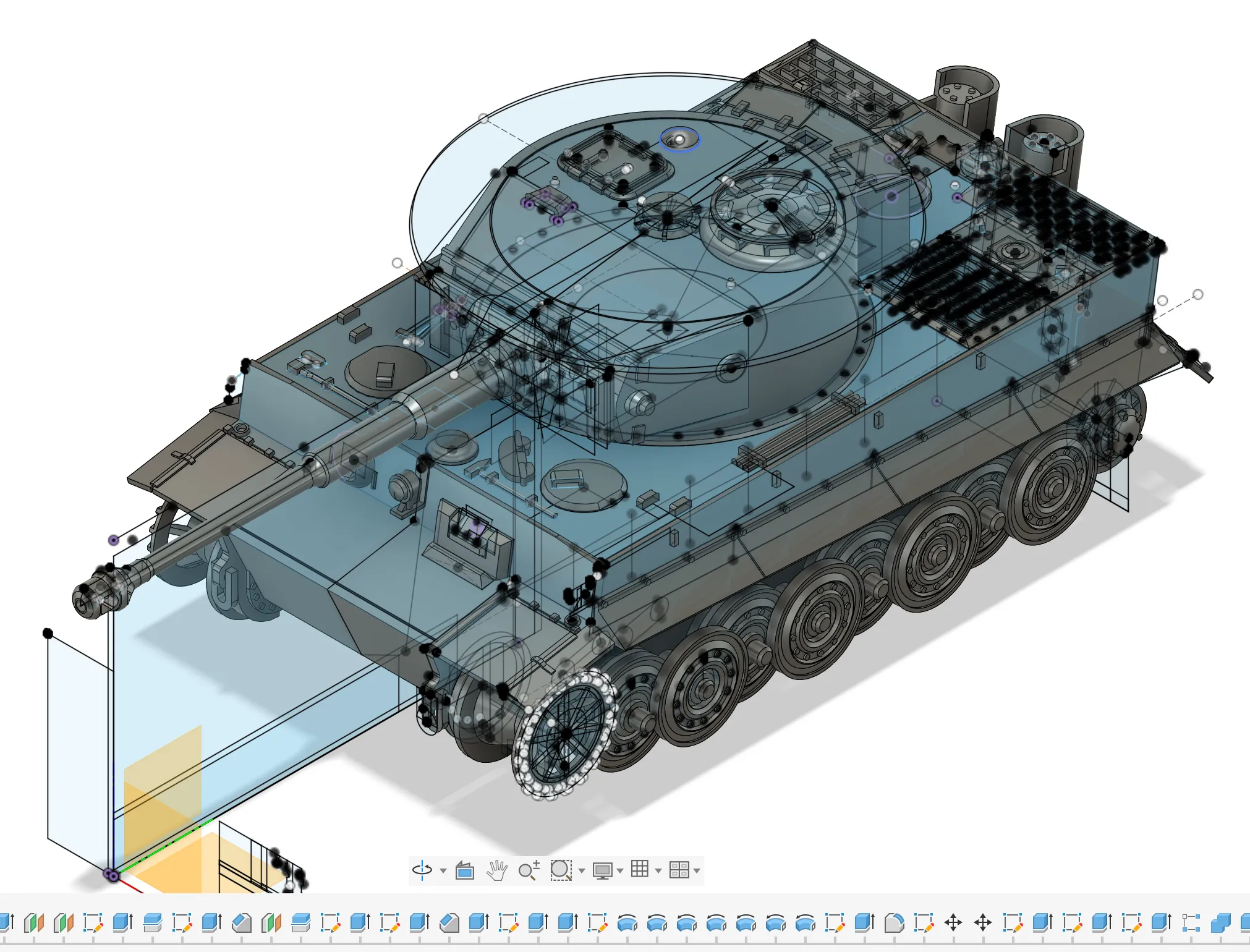

I am an aerospace engineering student from Ottawa, Canada, and also a military enthusiast. Every model here is designed from the ground up by me in Fusion 360 and printed using my own equipment, with no AI involved. Each design is tested and refined repeatedly to ensure it is reliable and works as intended.

If you like my work, consider leaving a boost — it really helps me keep creating more exciting models!

This Tiger tank is the first project in my Tank Remake Series.My goal is to refine my early models by adding functional rolling wheels and a movable gun barrel. As many of you may know, modifying an existing 3D model is often more difficult than starting from scratch. That’s why this Tiger tank was completely redesigned from the ground up, not based on my old version.

================================

📋 Recommended Print Settings (For Best Results)

• Filament: PLA. Different materials have different shrink rates, so using other filaments might cause fitting issues or dimensional errors during assembly.
• Ambient Temperature: If you’re using an open-frame printer like the A1 or A1 Mini, keep your room above 20°C (68°F) to prevent warping.
• Print Bed Preparation: Wash with soap and water, then dry thoroughly to ensure good adhesion. For small parts, apply a glue stick for better bed adhesion.

🔧 Assembly Diagram Notes

• Blue Lines: Require super glue for assembly. I use Gorilla Super Glue.
• Yellow Lines: These are moving parts. Do not apply glue here.
